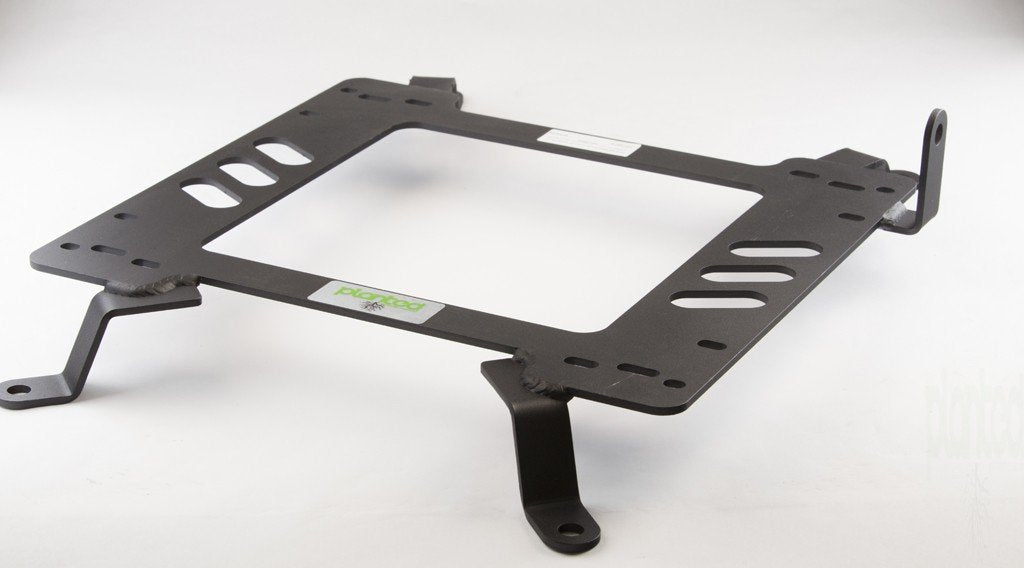

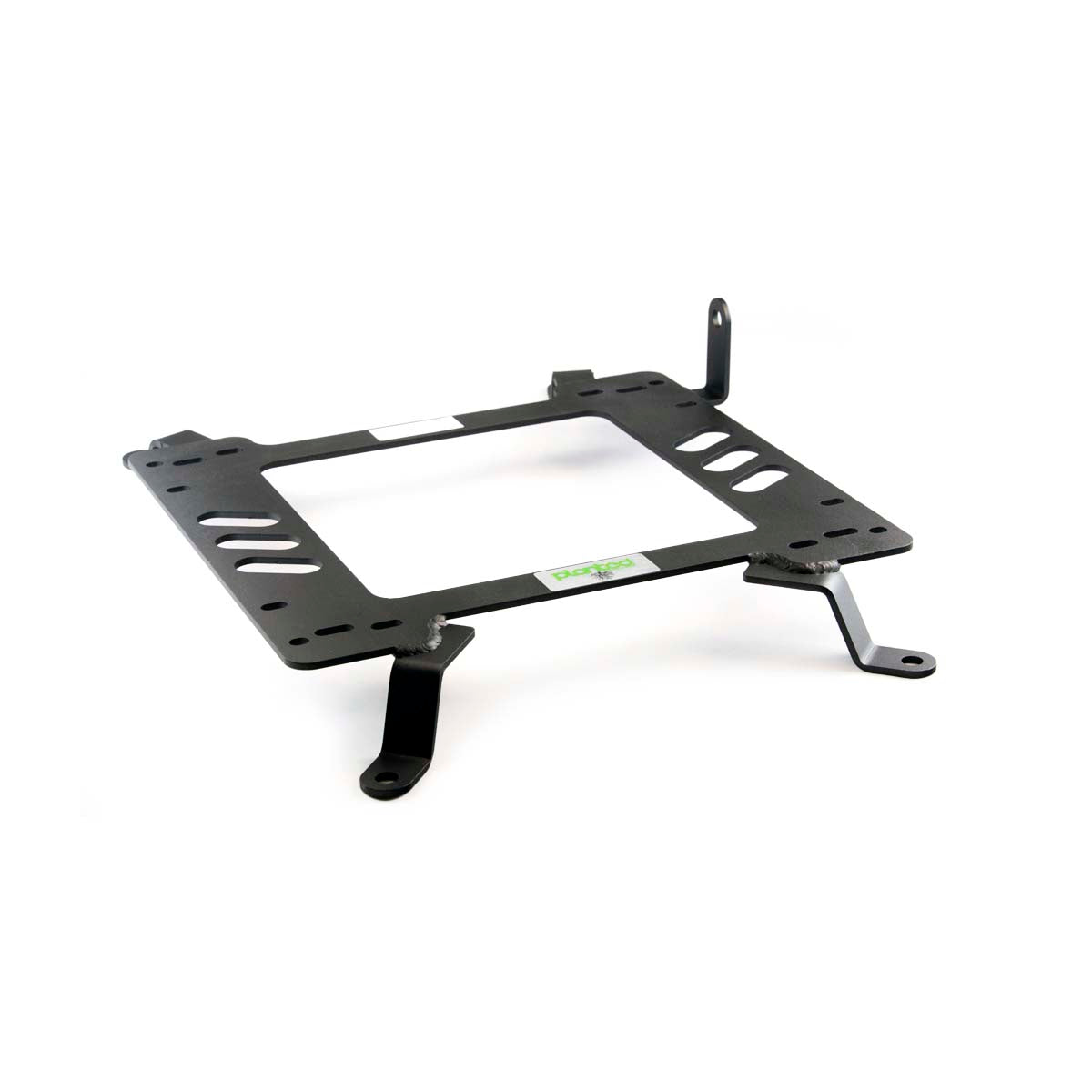

Planted Seat Bracket - Chevrolet Corvette (C5, 1997-2004) - Passenger/Right

• Fits 1997-2004 Chevrolet Corvette (C5), passenger/right side
• Laser-cut 3/16" steel, hand-welded in the USA, black powder coat
• Pre-slotted for most major slider patterns, with room for custom drilling
• Standard bolt pattern: includes the Recaro slider pattern. Cobra Wide and Scheel-Mann sliders need one hole per slider elongated 1/8"
• Bolts to factory mounting points, no floor modification
• Sold individually. The driver side is SB198DR
• Not an FIA-homologated seat mount. Confirm acceptance with your sanctioning body before competition use

Disclaimers:

• Seats come in many different shapes and sizes, so not all seats will fit in all vehicles. It is up to the end user to determine if the seat will fit before ordering the seat bracket and other components.
• Many vehicles have the steering wheel offset toward the center of the vehicle. This can be accentuated when installing an aftermarket seat of a different size than the factory seat.
• Replacing a factory seat with an aftermarket seat may cause the vehicle's warning indicators to activate. This can be due to airbag, weight and/or other sensors in the factory seat that are not included in an aftermarket seat. It may be possible to eliminate these indicators with an electronic resistor, but it is up to the end user to determine if a resistor will work and which resistor to use.
• Professional installation is recommended.

Owners who take a 1997-2004 Chevrolet Corvette to the track quickly find the limit of the factory seat's support. Moving to a fixed-back bucket makes the car easier to drive at pace, but the cockpit is tight and the floor isn't flat, so the mounting solution has to be right the first time.

Planted develops every bracket with the vehicle in its shop, using the actual floor as the reference rather than a drawing. The bracket is laser-cut from 3/16" steel, hand-welded in the USA for full weld penetration and finished in black powder coat. Each one goes through three stages of quality control before it ships.

The mounting surface accepts sliders from Recaro, Sparco, OMP, Cobra, Corbeau, Sabelt, Racetech, Status Racing and more. It's the Standard bolt pattern, so the Recaro pattern is included, while wide Cobra and Scheel-Mann sliders need one hole per slider elongated by 1/8". Bride sliders usually need their feet removed and a new pattern drilled. Spare material also allows direct mounting without sliders.

This is the passenger/right bracket, sold individually. The driver side is SB198DR. Confirm your seat's dimensions against the cabin before ordering. Removing the factory seat can trigger airbag or occupancy warning lights, which may need a resistor. Professional installation is recommended.
