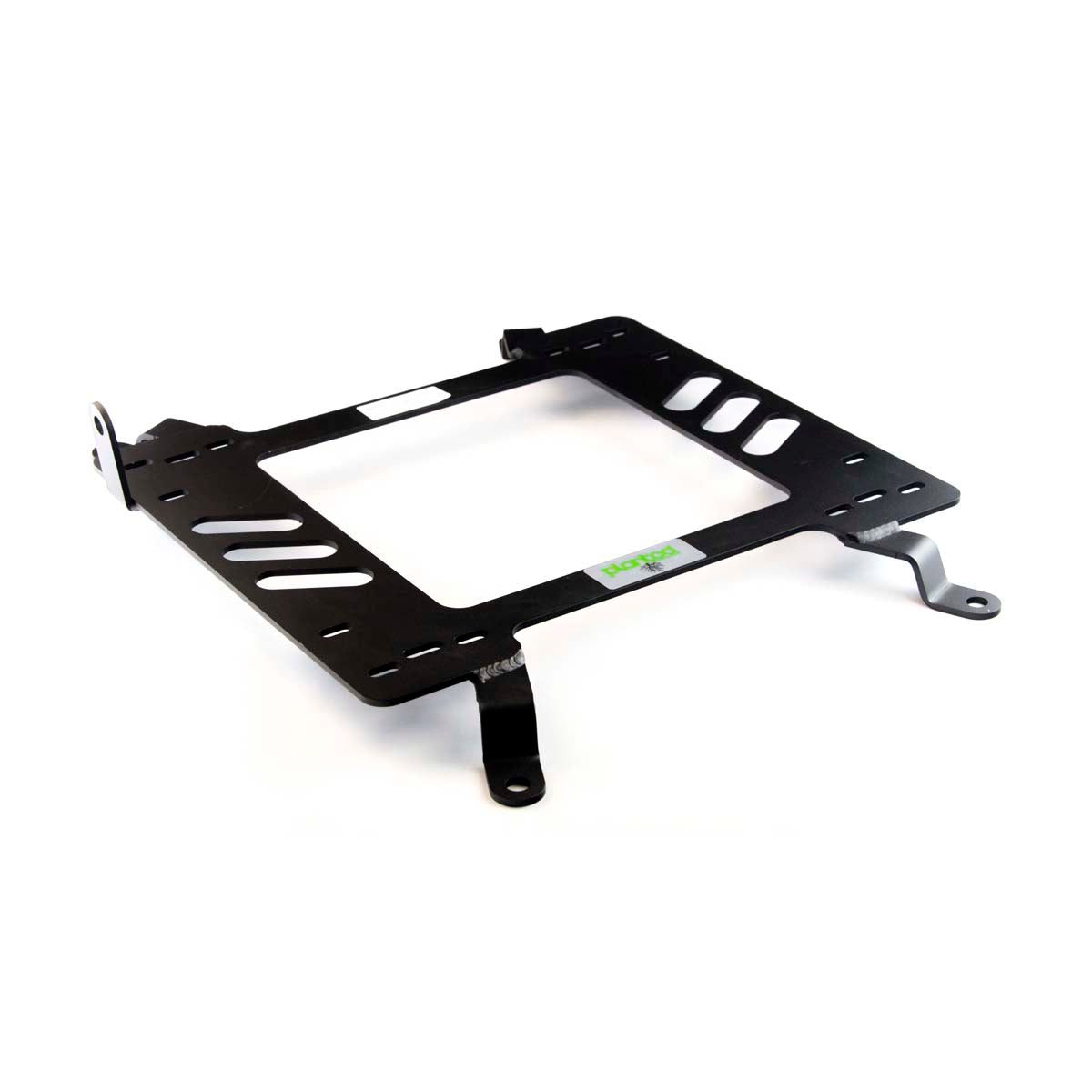

Planted Seat Bracket - Chevrolet Corvette C6/C7 (2005-2019, Non-ZR1) - Driver/Left

• Fits 2005-2019 Chevrolet Corvette C6/C7 (Non-ZR1), driver/left side
• Laser-cut 3/16" steel, hand-welded in the USA, black powder coat
• Pre-slotted for most major slider patterns, with room for custom drilling
• Standard bolt pattern: includes the Recaro slider pattern. Cobra Wide and Scheel-Mann sliders need one hole per slider elongated 1/8"
• Bolts to factory mounting points, no floor modification
• Seat belt tab on the inboard side only
• Sold individually. The passenger side is SB001PA
• Not an FIA-homologated seat mount. Confirm acceptance with your sanctioning body before competition use

Disclaimers:

• Seats come in many different shapes and sizes, so not all seats will fit in all vehicles. It is up to the end user to determine if the seat will fit before ordering the seat bracket and other components.
• Many vehicles have the steering wheel offset toward the center of the vehicle. This can be accentuated when installing an aftermarket seat of a different size than the factory seat.
• Replacing a factory seat with an aftermarket seat may cause the vehicle's warning indicators to activate. This can be due to airbag, weight and/or other sensors in the factory seat that are not included in an aftermarket seat. It may be possible to eliminate these indicators with an electronic resistor, but it is up to the end user to determine if a resistor will work and which resistor to use.
• Professional installation is recommended.

The 2005-2019 Chevrolet Corvette C6/C7 has more grip and speed than its factory road seat can comfortably support on track. A proper bucket keeps the driver located so steering and pedal inputs stay precise under high lateral load. It needs a mount that treats the car with the same care as the rest of the build.

Rather than working from a drawing, Planted develops each bracket on the car itself. The result bolts to the factory seat mounting points with no floor modification. The bracket is laser-cut from 3/16" steel, hand-welded in the USA and finished in black powder coat, and every unit is checked at three quality-control stages.

The mounting surface accepts sliders from Recaro, Sparco, OMP, Cobra, Corbeau, Sabelt, Racetech, Status Racing and more. It's the Standard bolt pattern, so the Recaro pattern is included, while wide Cobra and Scheel-Mann sliders need one hole per slider elongated by 1/8". Bride sliders usually need their feet removed and a new pattern drilled. Spare material also allows direct mounting without sliders.

Seat belt tab on the inboard side only.

This is the driver/left bracket, sold individually. The passenger side is SB001PA. Confirm your seat's dimensions against the cabin before ordering. Removing the factory seat can trigger airbag or occupancy warning lights, which may need a resistor. Professional installation is recommended.
