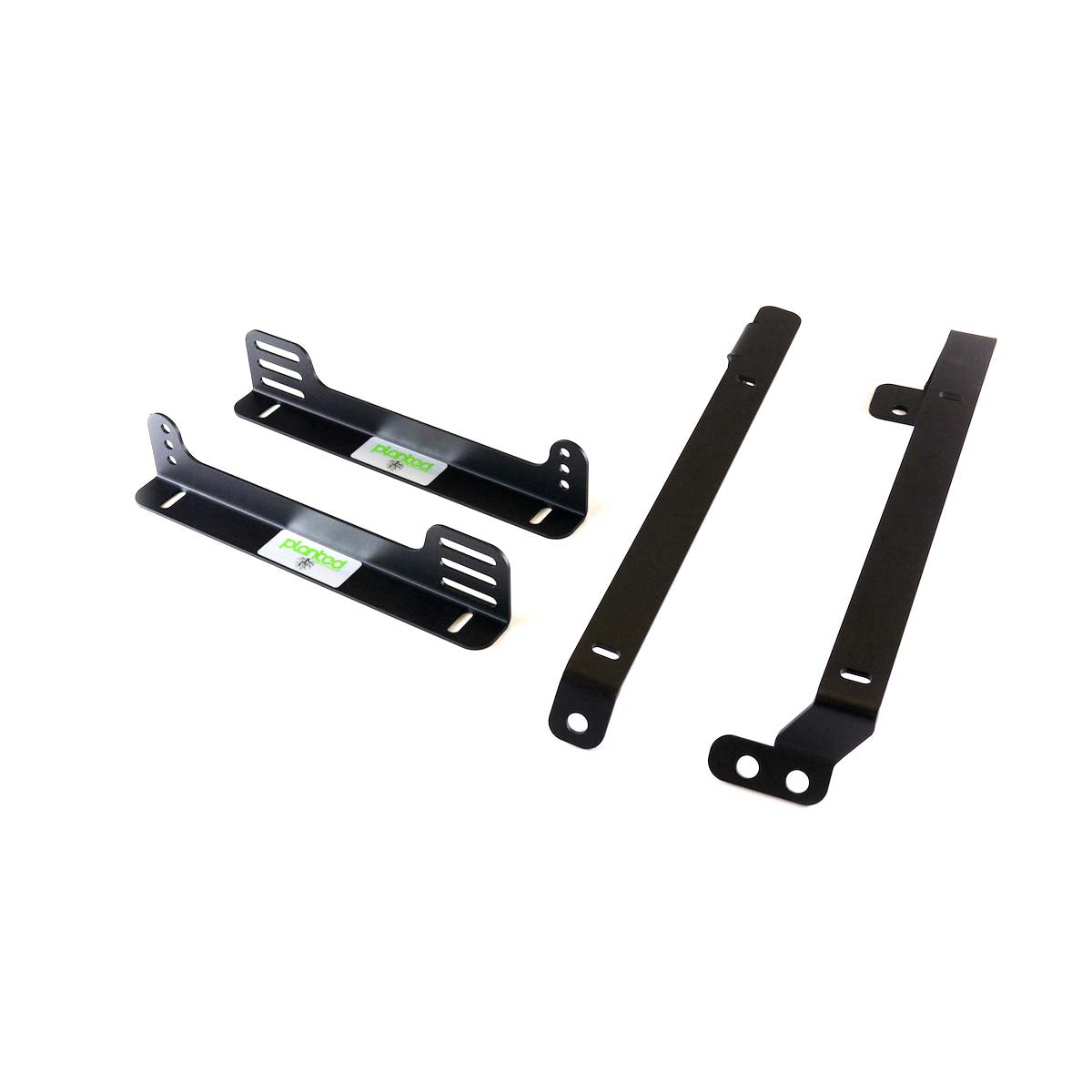

Planted Side Mount Seat Bracket - Nissan 240SX (1989-1998) - Driver/Left

• Fits all 1989-1998 Nissan 240SX coupes (S13/S14), driver/left side
• Extra-low mounting point lets the seat sit between the stock chassis rails
• Fits racing seats up to 16" wide at the side-mount holes
• 3/16" steel, hand-welded in the USA, black powder coat
• Bolts to factory mounting points, no floor modification
• Side mounts sold separately. For wider seats, see standard bracket SB050DR
• Not an FIA-homologated seat mount. Confirm acceptance with your sanctioning body before competition use.

Disclaimers:

• Seats come in many different shapes and sizes, so not all seats will fit in all vehicles. It is up to the end user to determine if the seat will fit before ordering the seat bracket and other components.
• Many vehicles have the steering wheel offset toward the center of the vehicle. This can be accentuated when installing an aftermarket seat of a different size than the factory seat.
• Replacing a factory seat with an aftermarket seat may cause the vehicle's warning indicators to activate. This can be due to airbag, weight and/or other sensors in the factory seat that are not included in an aftermarket seat. It may be possible to eliminate these indicators with an electronic resistor, but it is up to the end user to determine if a resistor will work and which resistor to use.
• Professional installation is recommended.

In a caged S13 or S14, the seat is usually the last few inches of headroom you can recover. This Planted bracket is purpose-built for side-mount racing seats. Its extra-low mounting point lets the seat drop between the stock chassis rails instead of sitting on top of a conventional bracket and slider stack.

The limit is width. The bracket accepts racing seats up to 16" wide measured at the side-mount holes. Measure your seat before ordering, because wider shells simply won't fit between the rails. If your seat is wider, Planted's standard 240SX bracket (SB050DR) is the better option.

The bracket is built from 3/16" steel, hand-welded and powder-coated black. It bolts to the factory mounting points with no floor cutting, and you keep a clean path back to stock later. A set of side mounts is needed to complete the install. Planted's universal steel and aluminum side mounts are available separately.

This is the driver/left bracket, sold individually. After lowering the seat, re-check harness shoulder-belt angles against your harness manufacturer's guidance. Professional installation is recommended.
